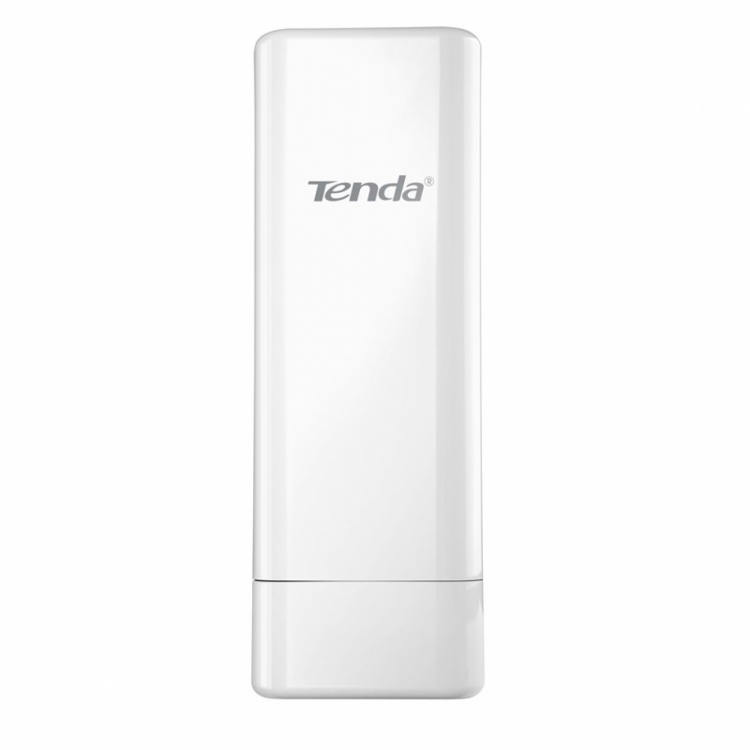

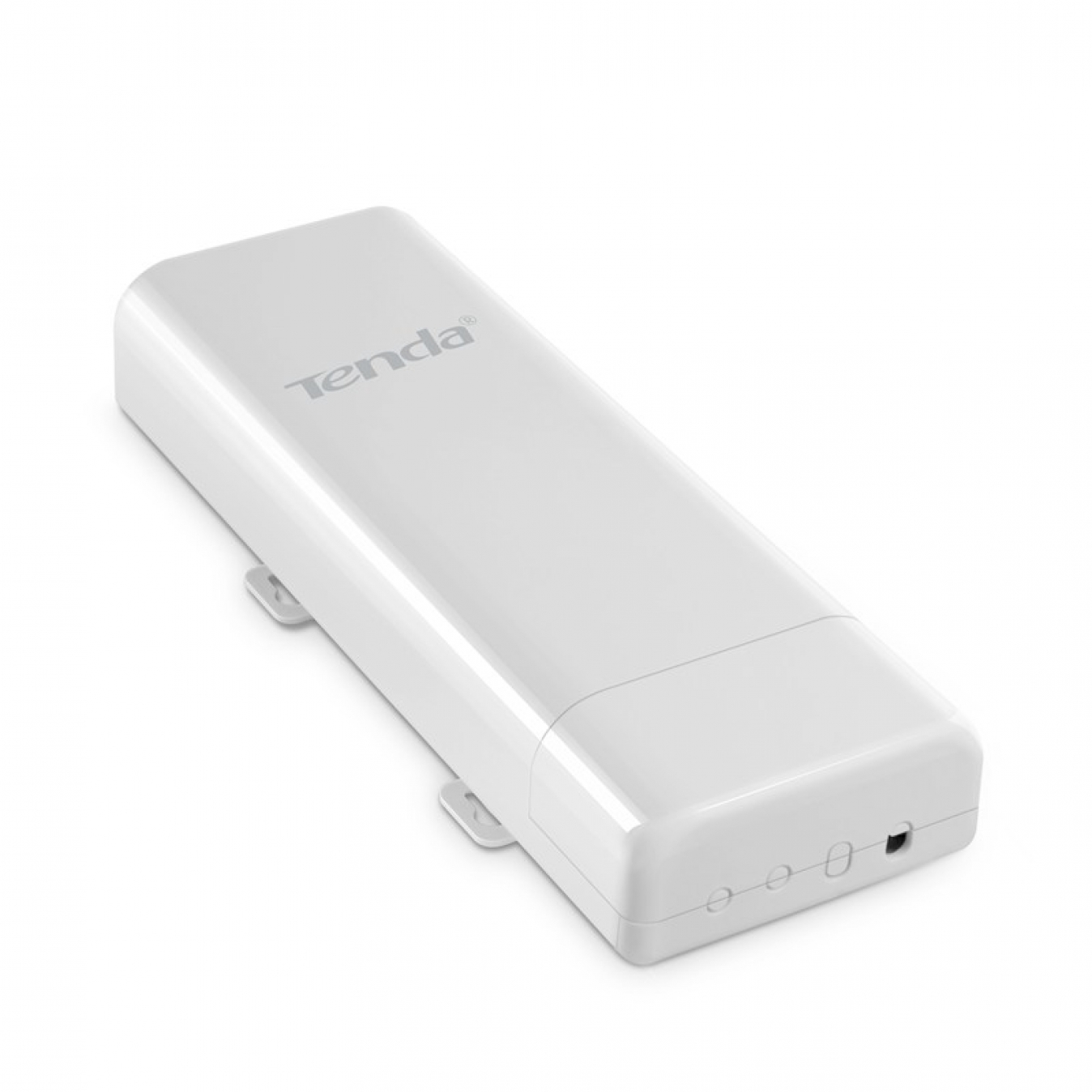

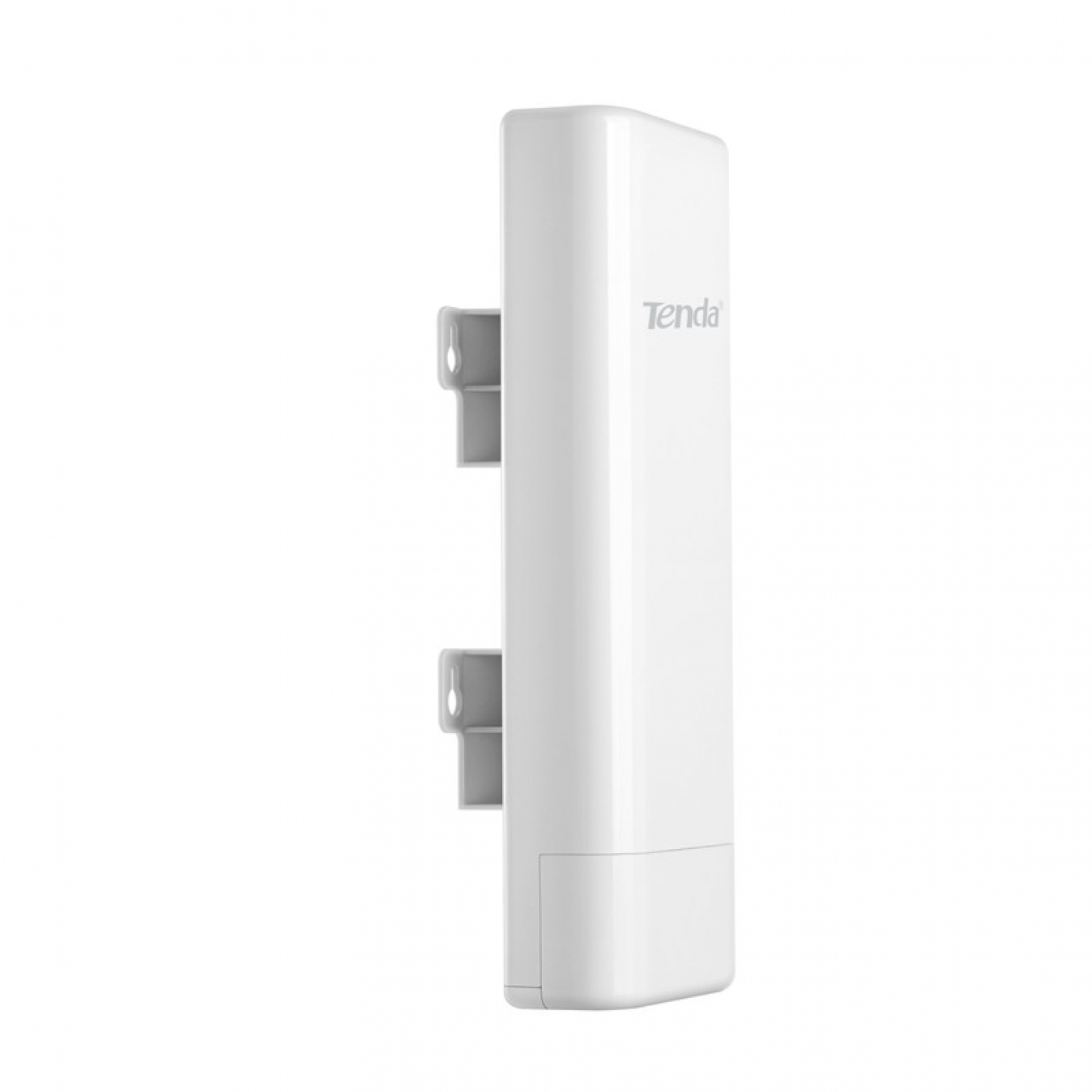

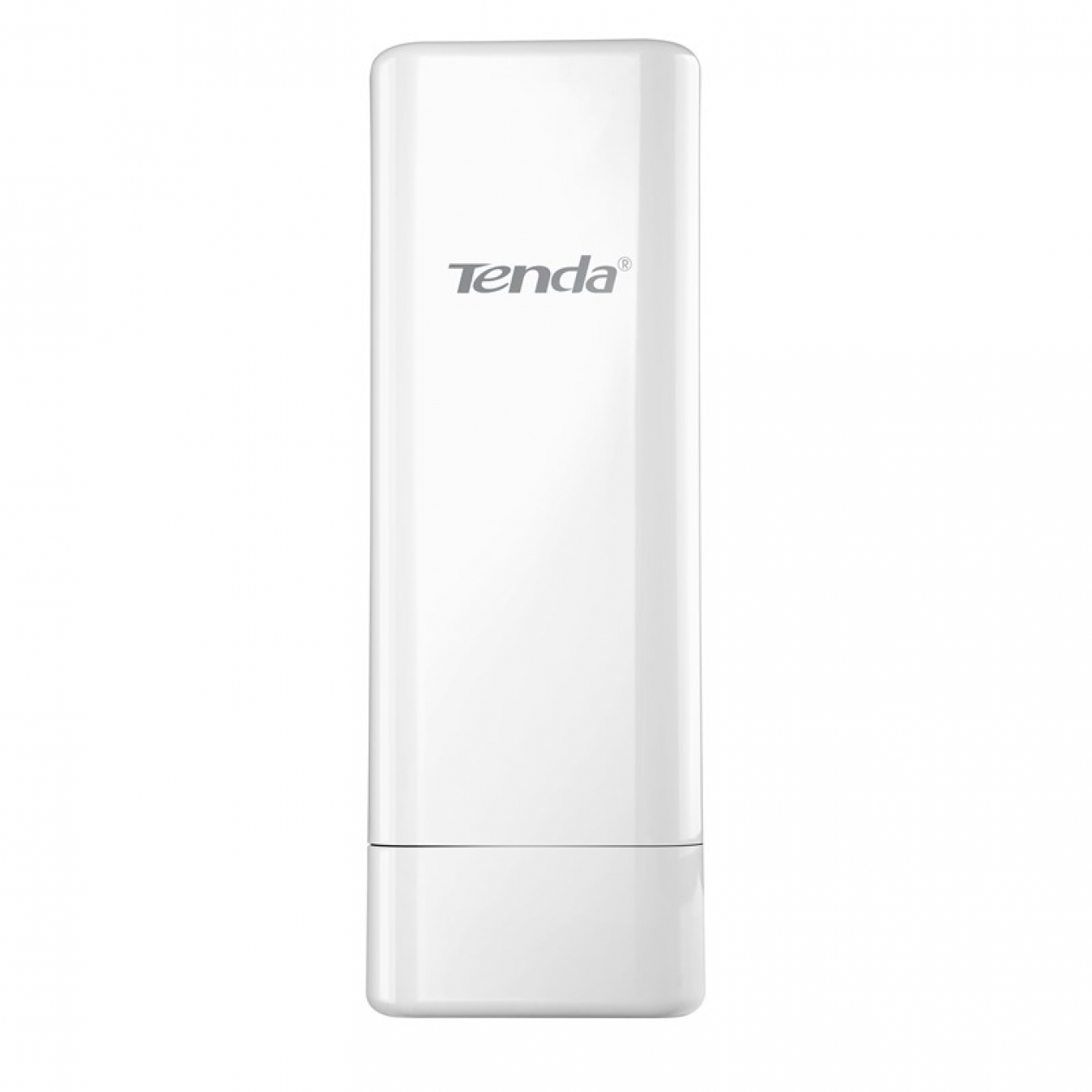

Tenda O6 5.8 GHZ 11 AC 433 Mbps
Item Code: TEO6
Product Highlights
O6 5GHz 11AC N433 Outdoor Point to Point CPE
O6 5GHz 433Mbps outdoor Point to Point CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with an external power amplifier and a built-in 16dBi directional antenna to provide an efficient way to pick up and maintains a stable signal for a wireless network connection range up to 10 kilometers.
Dimension: 270*94.86*67.5mm
Frequency Range: 5GHz
Maximum wireless speed: 433Mbps
CPU Processor: Broadcom 800MHz
GND Terminal: 1
Interface: 1*GE PoE/WAN/LAN port
Mode Switch: Station: The device only work in Station mode
Off: The device work on
AP/Station/Universal Repeater/WISP/Router mode
AP: The device only work in AP mode
Button: Reset: Press 10 seconds or more to restore to default settings
Bridge: Press 3 seconds and release it to bridge uplink AP
Antenna: 16dbi Directional Antenna
Antenna Beamwidth: Horizontal: 30°
Vertical: 15°
Maximum Consumption: 9W
Lightning Protection: 6KV
Waterproof Level: IP64
LED: LAN,LED1,LED2,LED3
Power Supply: 24v 0.5A PoE Injector
Operating mode: AP/Station/Universal Repeater/WISP/Router
Standard&Protocol: IEEE 802.11ac/n/a
Wireless Speed: Enable/Disable Wireless Radio
SSID Hidden
Wireless Client isolation
Sensitivity Threshold
WMM Capable
APSD Capable
Wireless Access Control
Wireless Client list
Wireless Security: 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
Transmit Power: Adjustable power by 1dBm
Reception Sensitivity: MCS0: -90dbm
MCS7: -72dbm
DHCP Server: DHCP Server
Clients list
VPN Pass-through: PPTP,L2TP
Ping Watchdog: Support
Speed Test: Support
Remote Web access: Support
Schedule Reboot: Support
Page Timeout: Support
Dyndns: noip, dyndns.org
Network Diagnoses: Ping, Traceroute, Signal Scan
Management Tool: Time&Date Setting
System Log
Firmware update
Backup/Restore Configuration
Username Managerment
Temperature: Operating Temperature:-20℃ ~ 55℃
Storage Temperature:-40℃ ~ 70℃
Humidity: Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing
Default Settings: IP Address: 192.168.2.1
Login Username:admin
Login Password:admin
Certification: FCC/CE/RoHS
