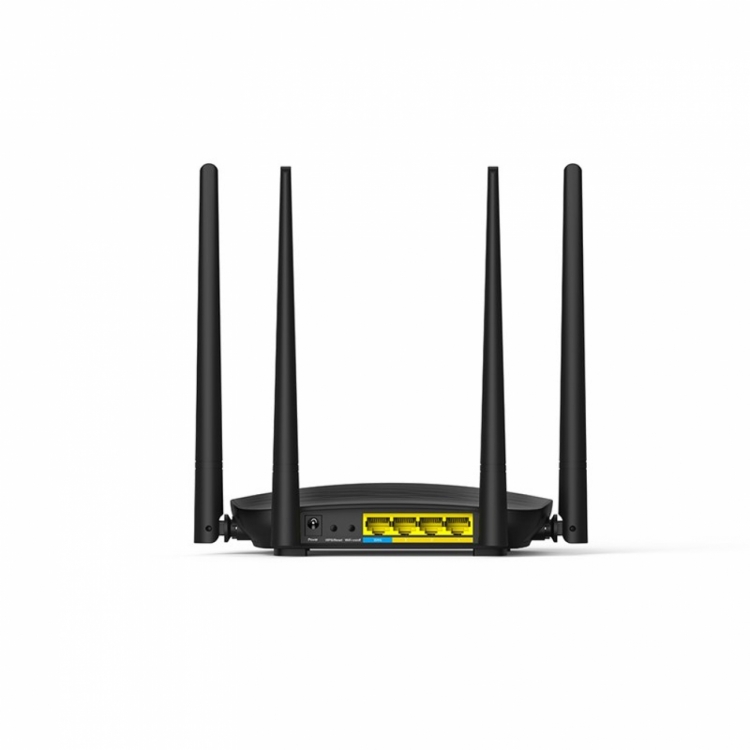

Gigibit Wifi Router AC5
Product Highlights
AC5 AC1200 Smart Dual-Band WiFi Router.Migration of ISP User Name and Password, Four 5dBi dual-band omni-directional antennas,1 GHz CPU / MU-MIMO / Beamforming+ technology, Remote management via Tenda WiFi App.Equipped with a 1 GHz high-frequency CPU made with 28nm process, AC5 outperforms ordinary routers. Stable and fast internet connection lets you enjoy smooth 4K HD videos and online games without delay.
Standard&Protocol: IEEE802.3, IEEE802.3u
Interface: 10/100 Mbps WAN port*1
10/100 Mbps LAN port*3
Antenna: 5dBi External antenna*4
Button: WPS/Reset button*1, WiFi on/off button*1
Power: AC input: 100-240V-50/60Hz, 0.2A
DC output: 9V 1A
LED indicator: System*1, WiFi*1, WAN*1, LAN*3
Data Rate: 5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mbps
Frequency: Concurrent dual band 2.4 GHz & 5 GHz
Transmit Power: 2.4G:
16dbm@MCS7
17dbm@OFDM 54M
19dbm@CCK 11M
5G:
12dbm@MCS9
14dbm@MCS7
Basic Features: SSID Broadcast: Enable/Disable
Beamforming
MU-MIMO
Wireless Security: WPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS (WiFi Protected Set-up) quick encryption
Internet Connection Type: PPPoE, Dynamic IP, Static IP
PPPoE (Russia), PPTP (Russia), L2TP (Russia)
Operating mode: Wireless Router Mode
Universal Repeater Mode
WISP Mode
AP Mode
DHCP Server: DHCP Server
DHCP Client List
DHCP Reservation
Virtual Server: Port Forwarding
DMZ Host
UPnP
Security: Client Filter (support blacklist and whitelist)
Parental Control
Remote Management
Firewall: Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet
DDNS: Support DDNS, No-ip, 3322.org, Oray.com, 88ip
VPN: Ipsec
PPTP
L2TP
PPTP client
L2TP client
Features: PPPoE Username/Password Clone
Smart WiFi Schedule
Smart Sleeping Mode
Smart LED on/off
Tenda WiFi App
Other: Bandwidth Control
Guest Network
IPTV
MAC Address Clone
Static Routing
System Log
Backup & Restore configurations
Online firmware upgrade
Local firmware upgrade
Temperature: Operating Temperature: 0℃ - 40℃
Storage Temperature: -40℃ -70℃.
Humidity: Operating Humidity: (10 - 90)% RH non-condensing
Storage Humidity: (5 - 90%) RH non-condensing.
Default Settings: Default Access: tendawifi.com
Certification: CE/FCC/RoHS
Package Content: AC1200 Smart Dual-Band WiFi Router
Power Adapter
Quick Installation Guide
Ethernet Cable
